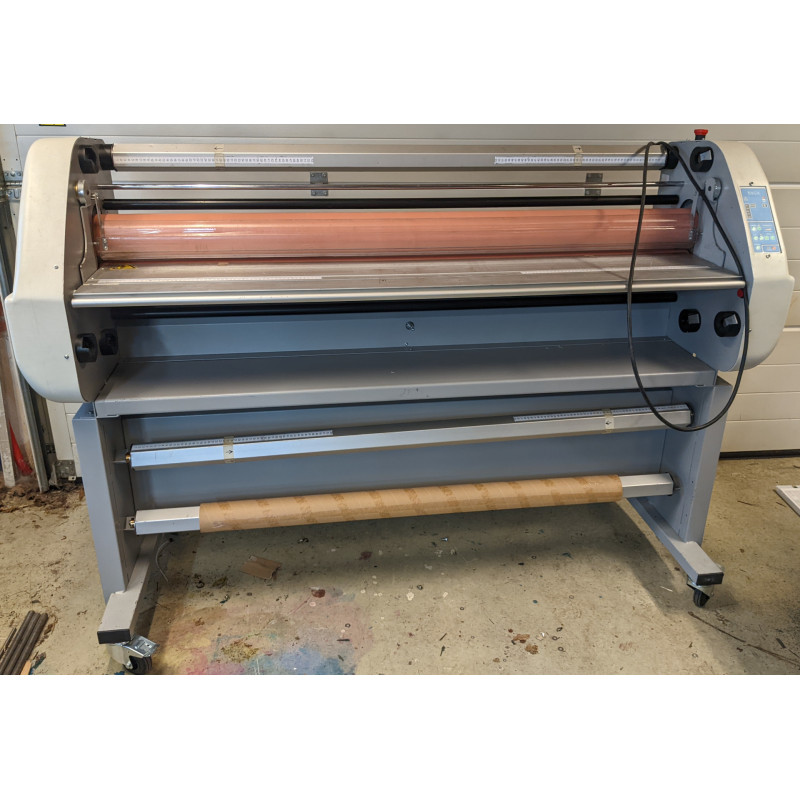

Kala Scirroco 1600

General specifications

• Maximum working width: 1600 mm (63")
• Maximum material thickness: 25 mm (1")
• Maximum film thickness: 250 microns per side
• Speed: Up to 3 m/min (10 ft/min)
• Machine weight: 287 kg (632 lbs)
• Machine dimensions: 194 x 76 x 137 cm (77" x 30" x 54")

• Roller temperature: Adjustable from 40°C to 160°C (104°F to 320°F)
• Roller diameter: 78 mm (3")
• Heating: Heating rollers with uniform heat dispersion
• Cooling: Powerful cooling fans for hot lamination

• Lamination types: Hot, cold, single-sided, and simultaneous (print and adhesive)
• Encapsulation: Yes, for 1600 model
• Mounting: Yes, up to 25 mm thick boards
• Pressure: Digital display and automatic pressure control
• Operation: Reverse function, motor control foot pedal
• Spindles: 4 spindles included (2 upper, 2 lower)
• Safety: Two emergency stop buttons
